Submitted by , posted on 17 August 2000
|
 |
Image Description, by

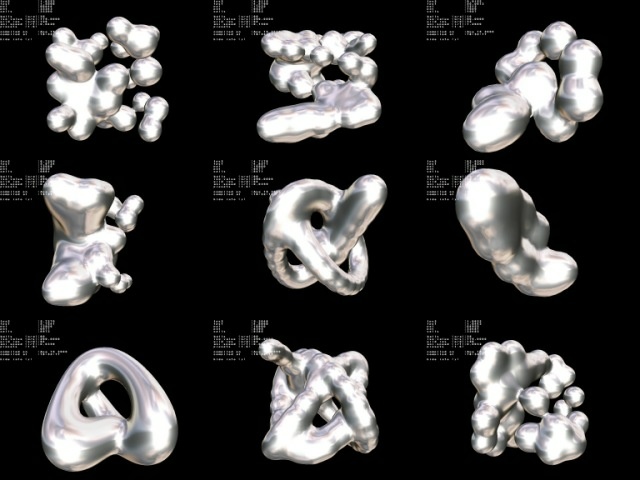

my little opengl metaballs demo. as i started this, it looked very much like
paul bourkes code. means, the values were computed for the whole grid
(example: 32x32x32 times getting distance to all the balls), and all
triangles used there own vertices. then i implemented a bounding box, so
only the values in the box around the ball were computed. this was a large
speedup, but it also brought problems, when the balls connected or there
were all near eachother, the surface could go out of the box, and gaps
appeared. the next thing i did was vertex sharing, because all the vertices
were computed twice!! yesterday i coded that it computes the values
recursively. that means that it startes with a cell, then looks what edges
of it are cut by the surface, and then goes to the cells that use this edge.
so only the needed values are computed. this meant over 100% speedup!
you can set the grid-resolution, the number of balls, the iso-value of the
surface, at runtime. i also did 6 presets of some cool settings. i realesed
the source for the old bound-box version.
get it at http://swiss.scene.org/quixoft/marko
|
|
