These are some shots from my demo entry to the NVIDIA demo competition
held at my University (RWTH-Aachen). It is written in C++ using
OpenGL, target platform is a Linux machine with a Geforce6800 although
a Windows Visual Studio Project file is included and may work (thanks
to Sander van Rossen). I've made some changes after the port so i
don't know if it is still working. The demo was developed with all
preprocessing tools and all artwork in about one and a half month.
It takes place in some kind of altar/temple, with some bird statue
(probably an bald eagle). It features day/night transitions
(powertweaked, not realistic). The models are done by myself and my
brother. I think modelling was one of the hardest part of the demo (at
least for me, having to learn how to master Blender first).
The demo features
a) 3 complete High Dynamic Range pipelines:
64 bit RGBA HDR buffer using GL_ATI_texture_float (bilinear
filtered) for Geforce 6800 level hardware
64 bit RGBA HDR buffer using GL_NV_float_buffer and
GL_NV_texture_rectangle (no filter) for Geforce 5800 level hardware
32 bit RGBE buffer (no filter, slow) for the ATI Radeon 9700+ (since
there is no (working) floating point p-buffer support in the ATI Linux
driver)
Using tonemapping with automatic adapting exposure based on the
average scene intensity and a post process intensity based bloom
filter. Also a vignette effect (as seen in the NVIDIA SDK) is
included, dimming the resulting framebuffer based on the distance from
the center.
b) Precomputed Radiance Transfer using Spherical Harmonic Lighting:
The lighting is entriely precomputed in a (rather long) preprocessing
step. It works by casting rays from each vertex in all directions,
accumulating the irradiance of the occluding triangles (works almost
like enhanced ambient occlusion). Its not the fastest or most optimal
algorithm, but it worked very well and was easy to implement,
especially given the very short amount of time available. The BRDF on
each face is then approximated by a 3rd order SH. Since it is a
Per-Vertex implementation, the triangulation requirement is quite high
and about 50.000 faces in the demo. The diffuse distance light can be
rotated around at will.
c) Fresnel term water blending between screenspace refractions and
cubemap reflections (only skybox) based on viewing angle. I've
implemented a simple fix for a common problem with screenspace
refraction, where geometry that is not below the water surface gets
refracted as the texture coordinates are bent outside the underwater
region. It works by first alpha-masking the water regions. When
rendering the refractions, if there is a non-alpha-masked texel, the
original (unrefracted) texture coordinate is used instead of the
refracted. This works pretty well in my case.

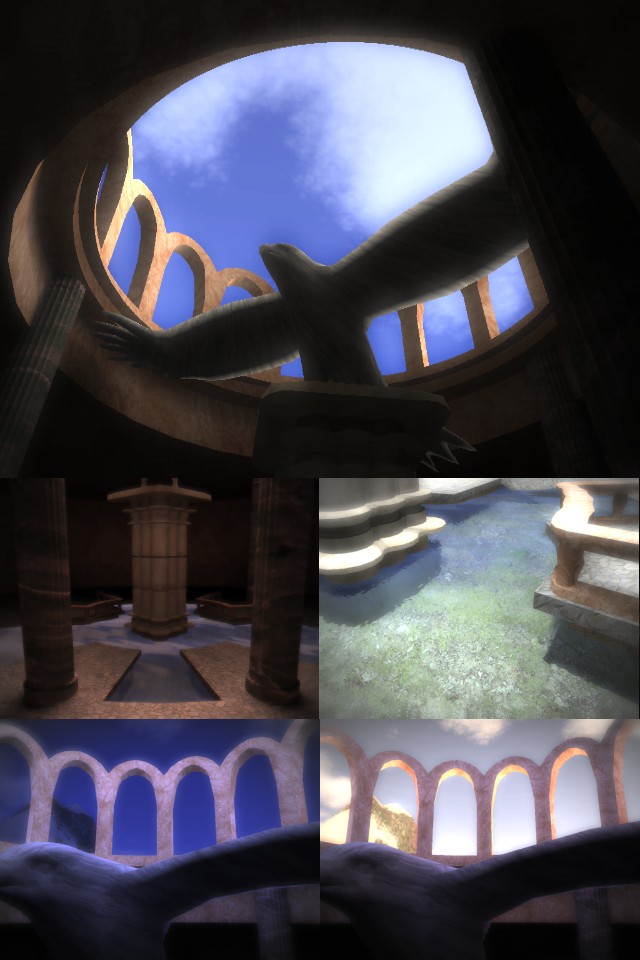

About the screenshots:
The top one just shows the HDR, bloomfilter and spherical harmonic lighting.
In the middle left one you can see the global illumination soft
shadowing behind the left and right pillar and below the top of the
center pillar (with direct illumination it would be all shadowed).
The middle right screen shows the water. It's really boring in a
screenshot, so better check out the video.
The lower screenshot show the day/night transition. While in the
left its night with an average intensity of maybe 10^-1, in the right
screenshot the light intensity is about 100x times as strong (dawn).
This is where you would really see the difference between HDR and LDR,
as the LDR image would be all black at night, and probably almost
white at day.
More info, a video, the full source code (best viewed on Linux with an
NVIDIA GFFX+ card) and two other cool demos:
http://www-i8.informatik.rwth-aachen.de/teaching/cg1/competition.html
Comments, critics and questions welcome
Volker
|
|
