Submitted by , posted on 26 January 2005
|
 |

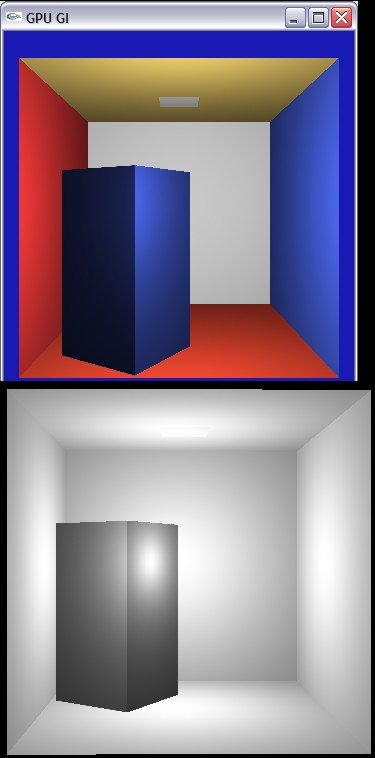

Image Description, by
I have just finished the construction of a ray tracer running almost
completely on the GPU of my GeForce GX 5650 with a NV3X GPU (That is, no
shader model 3.0). OpenGL along with RenderTexture[1] is used to
interface with the graphics card. Cg is used to control the GPU.
To make a ray tracer on the GPU it needs to fit into the computational
model used by the GPU. This can be done by mapping the algorithm to the
stream programming model. The mapping used was described and also
implemented by Timothy Purcell in his Ph.d. dissertation[2].
The ray tracer reads scenes in my own format, usually exported from 3D
Studio MAX using a custom exporter, and builds a uniform grid on the
CPU. The grid is then uploaded to the graphics card as textures along
with other geometry information and processing is handed over to the
graphics processor.
The GPU generate eye rays which are traversed through the grid until
they hit a triangle or leave the grid. When a triangle is hit, the hit
point is shaded according to material and normal parameters. To keep
track on how far each ray is in the pipeline, state vectors are kept for
each ray. The state vector, among other things, indicates whether the
ray is traversing the grid or is ray to be shaded of checked for
intersection with triangles.
The ray tracer was written in a span of two weeks and are therefore
simpler than it could have been, but it nevertheless demonstrates the
technique explained by Purcell. It would be simple to add levels of
recursion, producing a path tracer and it could also be extended with a
photon mapper[3].
It is also very slow compared to what the CPU would manage, this is
partly due to the lack of multi render targets on my GPU (causing me to
make _many_ context switches between texture render targets) and partly
due to the fact that no early-z culling technique is used. Speed was
never really achieved and the implementation should be looked as
something interesting to play with rather than something new (after all
I just implemented what was described in [2], which has been done
before) and exiting.
The document at www.moelhave.dk/index.php?site=projects gives an
extensive overview of the implementation. For others thinking about
implementing the algorithm, it might prove useful (or a complete waste
of time, what do I know? :) )
\Thomas Mølhave (http://www.moelhave.dk)
[1] http://gpgpu.sourceforge.net/
[2] http://graphics.stanford.edu/~tpurcell/
[3] http://graphics.stanford.edu/papers/photongfx/
|
|
